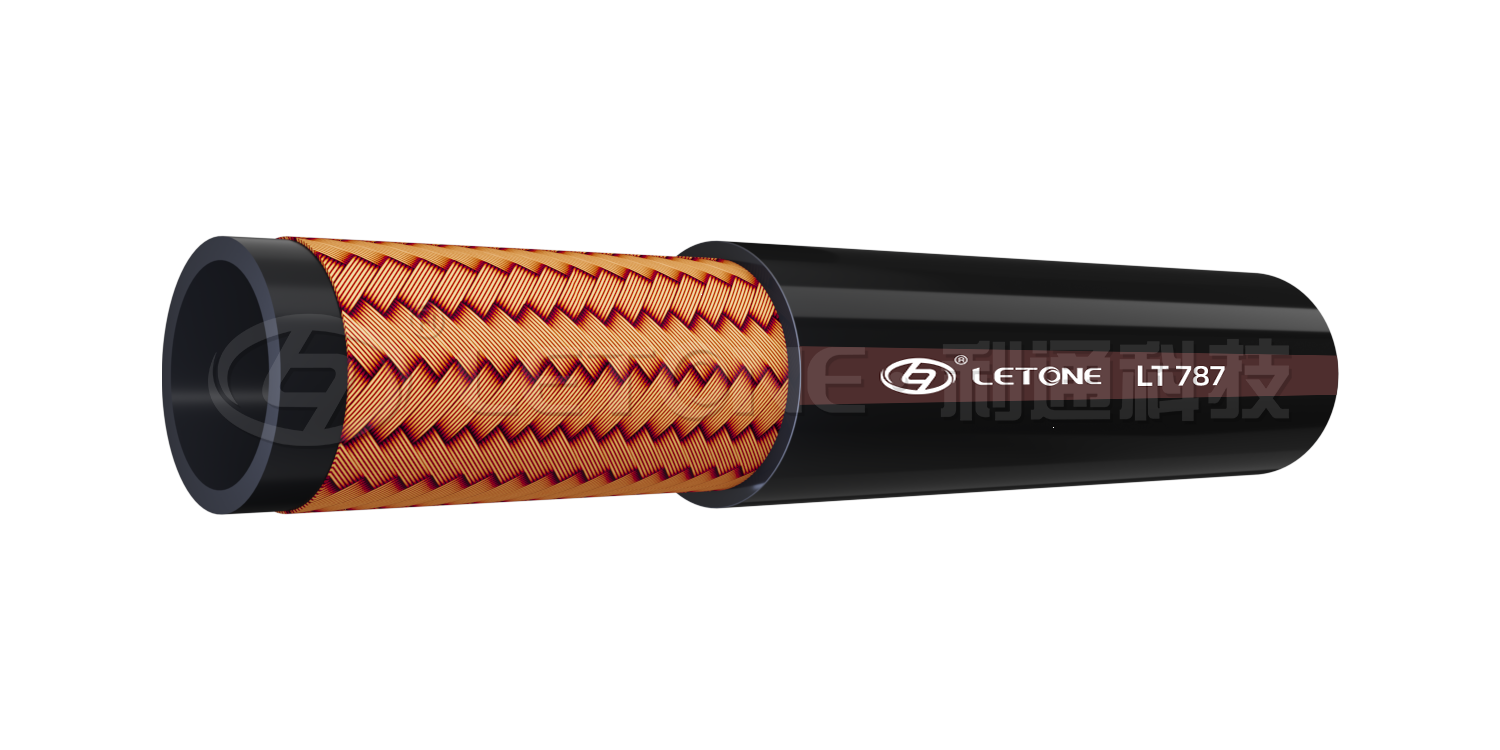

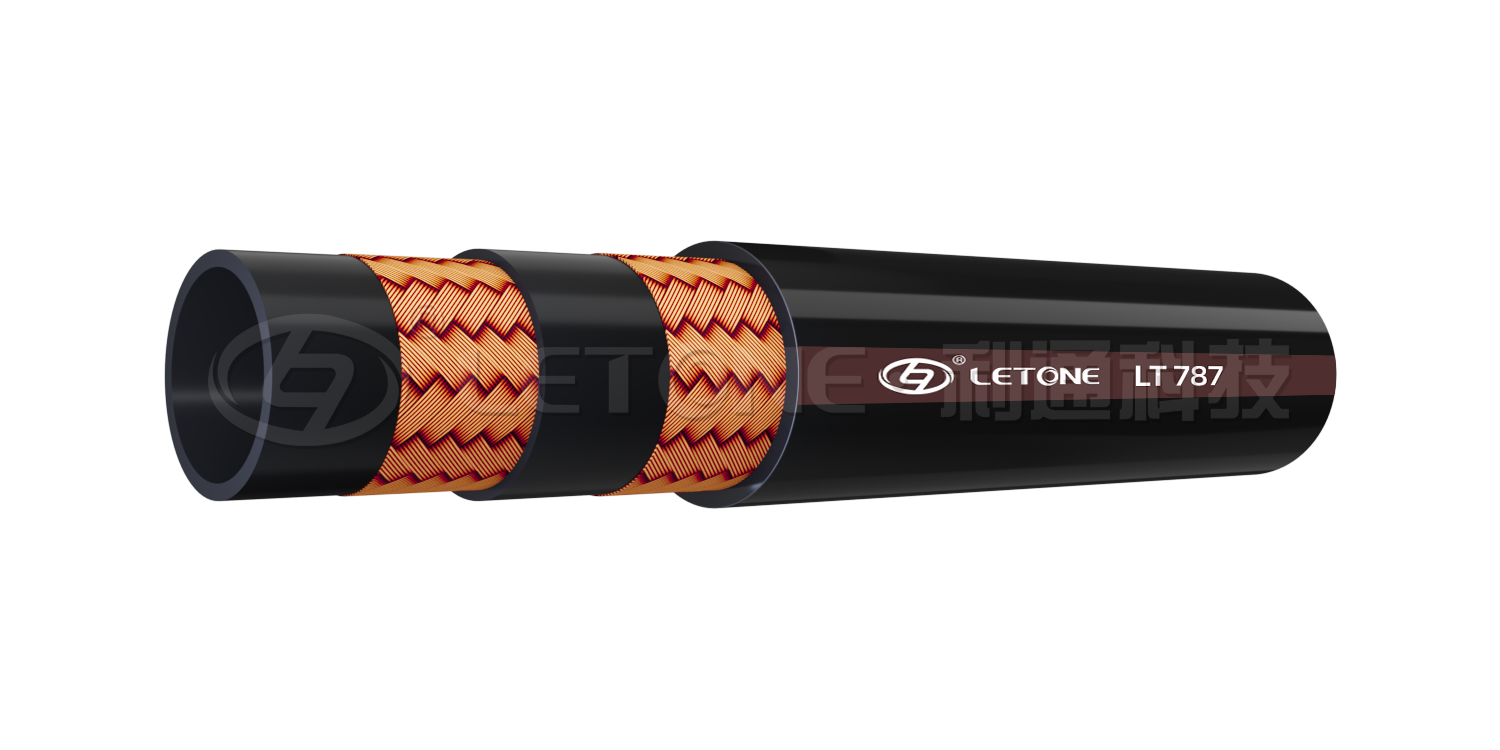

| 产品规格 | 软管内径 | 增强层外径 | 软管外径 | 最大工作压力 | 试验压力 | 最小爆破压力 | 最小弯曲半径 | 参考重量 | 适配接头 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DASH | IN | 最小mm | 最大mm | 最小mm | 最大mm | 最小mm | 最大mm | MPa | MPa | MPa | mm | kg/m | 系列 |
| LT787-5-1TE | -3 | 3/16 | 4.9 | 5.2 | 7.9 | 9.1 | 10.0 | 11.6 | 2.5 | 5.0 | 10.0 | 35 | 0.10 | BOPF/BTPF |
| LT787-6-1TE | -4 | 1/4 | 6.1 | 6.9 | 9.4 | 10.6 | 11.6 | 13.2 | 2.5 | 5.0 | 10.0 | 45 | 0.12 | BOPF/BTPF |
| LT787-8-1TE | -5 | 5/16 | 7.4 | 8.5 | 11.4 | 12.6 | 13.1 | 14.7 | 2.0 | 4.0 | 8.0 | 65 | 0.14 | BOPF/BTPF |
| LT787-10-1TE | -6 | 3/8 | 9.3 | 10.1 | 12.9 | 14.1 | 14.7 | 16.3 | 2.0 | 4.0 | 8.0 | 75 | 0.16 | BOPF/BTPF |
| LT787-13-1TE | -8 | 1/2 | 12.3 | 13.5 | 16.1 | 17.3 | 17.7 | 19.7 | 1.6 | 3.2 | 6.4 | 90 | 0.20 | BOPF/BTPF |
| LT787-16-1TE | -10 | 5/8 | 15.5 | 16.7 | 20.0 | 21.6 | 21.9 | 23.9 | 1.6 | 3.2 | 6.4 | 115 | 0.27 | BOPF/BTPF |
| LT787-6-2TE | -4 | 1/4 | 6.1 | 6.9 | 10.3 | 11.5 | 12.4 | 13.6 | 7.5 | 15 | 30 | 40 | 0.13 | BOPF/BTPF |
| LT787-8-2TE | -5 | 5/16 | 7.4 | 8.5 | 12.0 | 13.2 | 14.2 | 15.4 | 6.8 | 13.6 | 27.2 | 50 | 0.17 | BOPF/BTPF |
| LT787-10-2TE | -6 | 3/8 | 9.3 | 10.1 | 14.1 | 15.3 | 16.0 | 17.2 | 6.3 | 12.6 | 25.2 | 60 | 0.20 | BOPF/BTPF |
| LT787-13-2TE | -8 | 1/2 | 12.3 | 13.5 | 17.1 | 18.3 | 18.9 | 20.5 | 5.8 | 11.6 | 23.2 | 70 | 0.24 | BOPF/BTPF |
| LT787-16-2TE | -10 | 5/8 | 15.5 | 16.7 | 21.2 | 22.8 | 23.0 | 24.6 | 5.0 | 10 | 20 | 90 | 0.32 | BOPF/BTPF |
| LT787-19-2TE | -12 | 3/4 | 18.5 | 19.8 | 24.4 | 26.0 | 26.4 | 28.0 | 4.5 | 9 | 18 | 110 | 0.38 | BOPF/BTPF |
| LT787-25-2TE | -16 | 1 | 24.6 | 26.2 | 31.5 | 33.5 | 33.3 | 35.7 | 4.0 | 8 | 16 | 130 | 0.56 | BOPF/BTPF |
| LT787-32-2TE | -20 | 1 1/4 | 30.8 | 32.8 | 38.0 | 40.0 | 40.8 | 43.2 | 3.5 | 7 | 14 | 140 | 0.74 | BOPF/BTPF |
| LT787-6-3TE | -4 | 1/4 | 6.1 | 6.9 | 12.1 | 13.3 | 13.9 | 15.1 | 14.5 | 29 | 58.0 | 45 | 0.18 | BOPF/BTPF |
| LT787-8-3TE | -5 | 5/16 | 7.4 | 8.5 | 14.2 | 15.4 | 16.2 | 17.4 | 13.0 | 26 | 52.0 | 55 | 0.22 | BOPF/BTPF |
| LT787-10-3TE | -6 | 3/8 | 9.3 | 10.1 | 16.1 | 17.3 | 17.9 | 19.1 | 11.0 | 22 | 44.4 | 70 | 0.26 | BOPF/BTPF |
| LT787-13-3TE | -8 | 1/2 | 12.3 | 13.5 | 19.0 | 20.2 | 21.0 | 22.6 | 9.3 | 18.6 | 37.2 | 85 | 0.30 | BOPF/BTPF |
| LT787-16-3TE | -10 | 5/8 | 15.5 | 16.7 | 22.4 | 24.0 | 25.4 | 27.0 | 8.0 | 16 | 32.0 | 105 | 0.44 | BOPF/BTPF |
| LT787-19-3TE | -12 | 3/4 | 18.2 | 19.8 | 26.0 | 27.6 | 28.2 | 29.8 | 7.0 | 14 | 28.0 | 130 | 0.48 | BOPF/BTPF |
| LT787-25-3TE | -16 | 1 | 24.6 | 26.2 | 32.5 | 34.5 | 35.3 | 37.7 | 5.5 | 11 | 22.0 | 150 | 0.70 | BOPF/BTPF |
| LT787-32-3TE | -20 | 1 1/4 | 30.8 | 32.8 | 38.5 | 40.5 | 40.8 | 43.2 | 4.5 | 9 | 18.0 | 190 | 0.74 | BOPF/BTPF |
| LT787-38-3TE | -24 | 1 1/2 | 37.1 | 39.1 | 44.8 | 47.2 | 47.8 | 50.2 | 4.0 | 8 | 16.0 | 240 | 0.89 | BOPF/BTPF |
| LT787-51-3TE | -32 | 2 | 50.0 | 52.0 | 58.8 | 61.2 | 60.8 | 64.0 | 3.0 | 6 | 13.2 | 300 | 1.18 | BOPF/BTPF |
加*项仅供参考，实际参数以管体为准
