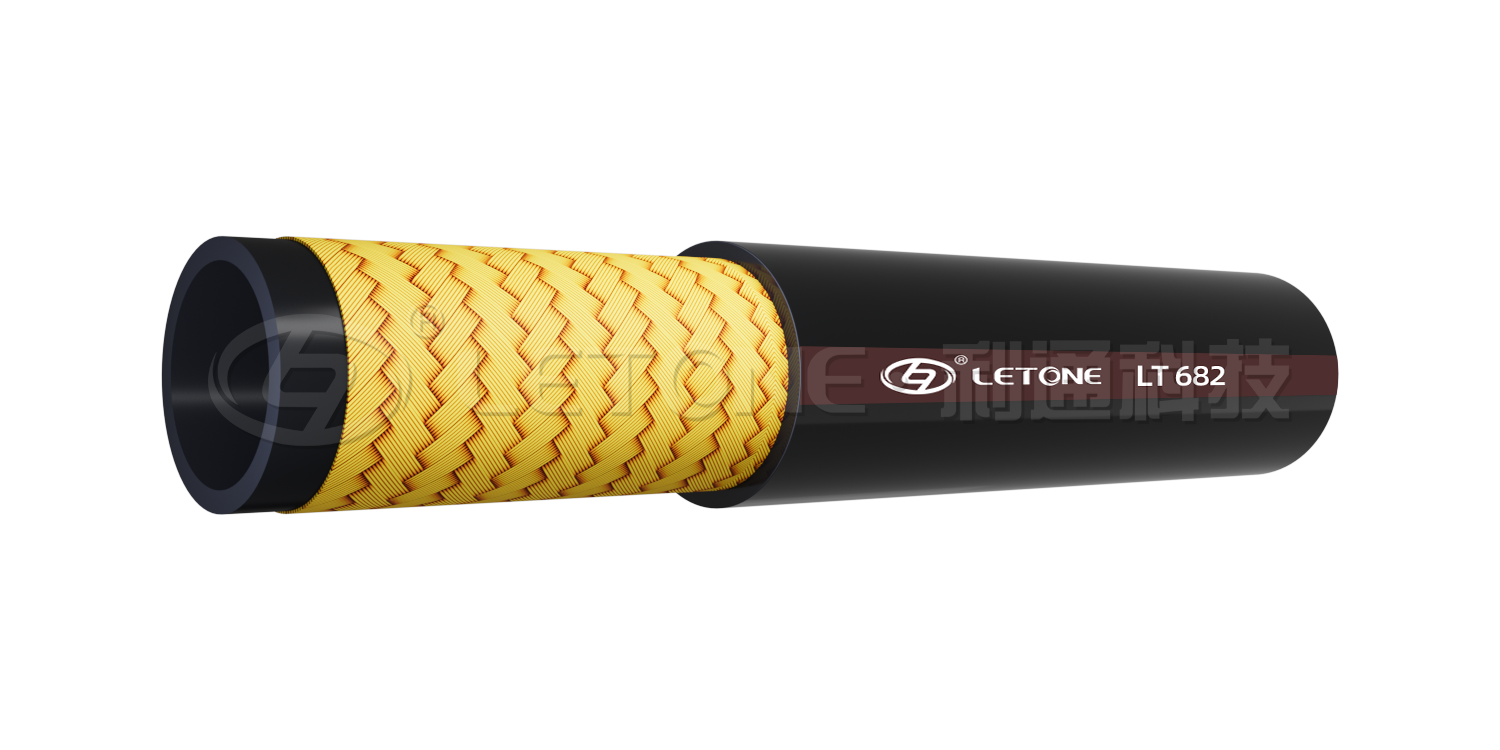

耐油液压软管,水基液压油输送软管

数据展示

产品规格			软管内径		增强层外径		软管外径		最大工作压力	试验压力	最小爆破压力	最小弯曲半径	参考重量	适配接头系列
PN	DASH	IN	最小mm	最大mm	最小mm	最大mm	最小mm	最大mm	MPa	MPa	MPa	mm	kg/m	系列
LT682-5-1	-3	3/16	4.6	5.4	9.0	10.5	11.5	12.9	25.0	45.0	90.0	100	0.18	BOPF/BTFP
LT682-6-1	-4	1/4	6.2	7.0	10.6	11.6	14.6	16.2	22.5	40.5	90.0	110	0.27	BOPF/BTFP
LT682-8-1	-5	5/16	7.7	8.5	11.5	13.5	16.2	17.5	21.5	43.0	85.0	133	0.33	BOPF/BTFP
LT682-10-1	-6	3/8	9.3	10.3	14.5	15.7	18.5	19.9	18.0	36.0	72.0	130	0.40	BOPF/BTFP
LT682-13-1	-8	1/2	12.3	13.5	17.5	19.0	21.8	23.4	16.0	32.0	64.0	180	0.50	BOPF/BTFP
LT682-16-1	-10	5/8	15.5	16.7	20.6	22.2	24.7	26.3	13.0	26.0	52.0	200	0.58	BOPF/BTFP
LT682-19-1	-12	3/4	18.6	19.8	24.3	25.5	28.7	30.3	10.5	21.0	42.0	240	0.73	BOPF/BTFP
LT682-25-1	-16	1	25.0	26.4	31.9	33.1	36.3	37.9	8.8	17.5	35.0	300	1.04	BOPF/BTFP
LT682-32-1	-20	11/4	31.4	33.0	39.2	40.8	43.7	45.3	6.3	12.5	25.0	420	1.28	BOPF/BTFP
LT682-38-1	-24	11/2	37.7	39.3	44.9	46.5	49.8	52.2	5.0	10.0	20.0	500	1.51	BOPF/BTFP
LT682-51-1	-32	2	50.4	52.0	58.7	60.3	64.3	66.7	4.0	8.0	16.0	630	2.20	BOPF/BTFP
LT682-5-2	-3	3/16	4.6	5.4	9.0	10.5	11.5	12.9	25.0	45.0	90.0	100	0.18	BOPF/BTFP
LT682-6-2	-4	1/4	6.1	7.0	12.6	13.6	16.3	17.7	40.0	80.0	160.0	110	0.42	BOPF/BTFP
LT682-8-2	-5	5/16	7.7	8.5	14.1	15.1	19.4	21.7	33.0	66.0	132.0	110	0.60	BOPF/BTFP
LT682-10-2	-6	3/8	9.3	10.3	16.3	17.5	20.3	21.7	27.5	55.0	110.0	130	0.73	BOPF/BTFP
LT682-13-2	-8	1/2	12.3	13.5	19.4	20.6	23.4	25.0	25.0	50.0	100.0	180	0.85	BOPF/BTFP
LT682-16-2	-10	5/8	15.5	16.7	22.2	23.8	26.6	28.2	21.5	43.0	85.0	200	1.03	BOPF/BTFP
LT682-19-2	-12	3/4	18.6	19.8	26.2	27.8	30.6	32.2	12.5	25.0	50.0	240	1.40	BOPF/BTFP
LT682-25-2	-16	1	25.0	26.4	33.6	34.8	37.7	39.3	16.5	32.5	65.0	300	1.44	BOPF/BTFP
LT682-32-2	-20	11/4	31.4	33.0	43.6	45.0	48.0	50.4	12.5	25.0	50.0	420	2.14	BOPF/BTFP
LT682-38-2	-24	11/2	37.7	39.3	49.6	51.4	54.4	56.8	9.0	18.0	36.0	500	2.50	BOPF/BTFP
LT682-51-2	-32	2	50.4	52.0	62.3	64.7	67.0	69.4	8.0	16.0	32.0	630	3.07	BOPF/BTFP
