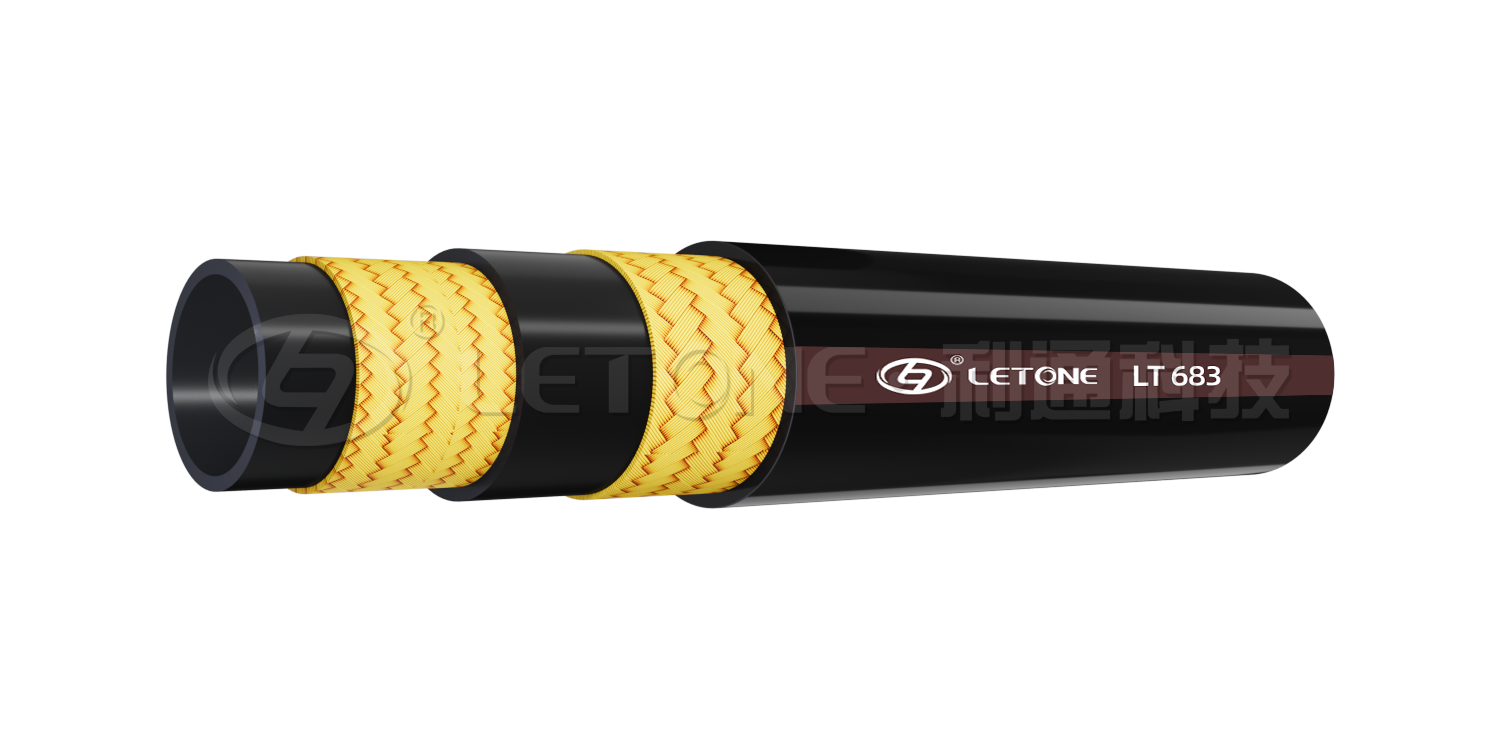

| 产品规格 | 软管内径 | 增强层外径 | 软管外径 | 最大工作压力 | 试验压力 | 最小爆破压力 | 最小弯曲半径 | 参考重量 | 适配接头系列 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN | DASH | IN | 最小mm | 最大mm | 最小mm | 最大mm | 最小mm | 最大mm | MPa | MPa | MPa | mm | kg/m | 系列 |
| LT683-6-1 | -4 | 1/4 | 6.1 | 6.9 | 9.9 | 10.9 | 11.8 | 13.2 | 22.5 | 45 | 90 | 75 | 0.18 | BOPF/BTPF |
| LT683-8-1 | -5 | 5/16 | 7.7 | 8.5 | 11.2 | 12.2 | 13.1 | 14.5 | 21.5 | 43 | 86 | 85 | 0.20 | BOPF/BTPF |
| LT683-10-1 | -6 | 3/8 | 9.3 | 10.1 | 13.3 | 14.3 | 15.1 | 16.5 | 18 | 36 | 72 | 90 | 0.27 | BOPF/BTPF |
| LT683-13-1 | -8 | 1/2 | 12.3 | 13.5 | 16.4 | 17.6 | 18.9 | 20.3 | 16 | 32 | 64 | 130 | 0.35 | BOPF/BTPF |
| LT683-16-1 | -10 | 5/8 | 15.5 | 16.7 | 19.8 | 21.0 | 21.9 | 23.3 | 13 | 26 | 52 | 150 | 0.42 | BOPF/BTPF |
| LT683-19-1 | -12 | 3/4 | 18.6 | 19.8 | 23.1 | 24.5 | 25.6 | 27.2 | 10.5 | 21 | 42 | 180 | 0.54 | BOPF/BTPF |
| LT683-25-1 | -16 | 1 | 25.0 | 26.4 | 30.5 | 39.6 | 33.2 | 34.8 | 6.3 | 12.6 | 35.5 | 230 | 0.78 | BOPF/BTPF |
| LT683-32-1 | -20 | 1 1/4 | 31.8 | 33.0 | 37.2 | 46.0 | 39.8 | 42.2 | 5.0 | 10.0 | 25.2 | 250 | 0.93 | BOPF/BTPF |
| LT683-38-1 | -24 | 1 1/2 | 38.1 | 39.3 | 44.4 | 58.5 | 47.8 | 49.0 | 4.0 | 8.0 | 20.0 | 300 | 1.12 | BOPF/BTPF |
| LT683-51-1 | -32 | 2 | 50.6 | 52.0 | 56.8 | 71.6 | 61.0 | 64.0 | 3.5 | 7.0 | 160.0 | 400 | 1.56 | BOPF/BTPF |
| LT683-64-1 | -40 | 2 1/2 | 62.3 | 64.7 | 68.4 | 84.1 | 71.0 | 75.0 | 3.0 | 6.0 | 14.0 | 700 | 1.81 | BOPF/BTPF |
| LT683-76-1 | -48 | 3 | 75.0 | 77.4 | 80.9 | 31.9 | 85.0 | 88.0 | 8.8 | 17.6 | 12.0 | 800 | 2.23 | BOPF/BTPF |
| LT683-6-2 | -4 | 1/4 | 6.1 | 6.9 | 11.2 | 12.2 | 12.9 | 14.3 | 40 | 80 | 160 | 75 | 0.28 | BOPF/BTPF |
| LT683-8-2 | -5 | 5/16 | 7.7 | 8.5 | 12.8 | 13.8 | 14.5 | 15.9 | 35 | 70 | 140 | 85 | 0.32 | BOPF/BTPF |
| LT683-10-2 | -6 | 3/8 | 9.3 | 10.1 | 14.9 | 15.9 | 16.8 | 18.2 | 33 | 66 | 132 | 90 | 0.43 | BOPF/BTPF |
| LT683-13-2 | -8 | 1/2 | 12.3 | 13.5 | 18.0 | 19.2 | 20.0 | 21.6 | 27.5 | 55 | 110 | 130 | 0.52 | BOPF/BTPF |
| LT683-16-2 | -10 | 5/8 | 15.5 | 16.7 | 21.4 | 22.6 | 23.2 | 24.8 | 25 | 50 | 100 | 170 | 0.66 | BOPF/BTPF |
| LT683-19-2 | -12 | 3/4 | 18.6 | 19.8 | 25.0 | 26.4 | 27.4 | 29.0 | 21.5 | 43 | 86 | 200 | 0.83 | BOPF/BTPF |
| LT683-25-2 | -16 | 1 | 25.0 | 26.4 | 32.4 | 33.8 | 34.5 | 36.1 | 16.5 | 33 | 66 | 250 | 1.17 | BOPF/BTPF |
| LT683-32-2 | -20 | 1 1/4 | 31.8 | 33.0 | 38.7 | 41.1 | 42.8 | 45.2 | 12.5 | 25.0 | 50.0 | 280 | 1.57 | BOPF/BTPF |
| LT683-38-2 | -24 | 1 1/2 | 38.1 | 39.3 | 44.7 | 47.1 | 48.0 | 51.0 | 10.0 | 20.0 | 40.0 | 400 | 1.82 | BOPF/BTPF |
| LT683-51-2 | -32 | 2 | 50.6 | 52.0 | 58.3 | 61.3 | 61.5 | 64.5 | 9.0 | 18.0 | 36.0 | 500 | 2.36 | BOPF/BTPF |
| LT683-64-2 | -40 | 2 1/2 | 62.3 | 64.7 | 72.1 | 75.1 | 74.9 | 77.9 | 7.0 | 14.0 | 28.0 | 760 | 2.91 | BOPF/BTPF |
| LT683-76-2 | -48 | 3 | 75.0 | 77.4 | 83.5 | 87.0 | 87.5 | 91.0 | 4.5 | 9.0 | 18.0 | 900 | 3.58 | BOPF/BTPF |
加*项仅供参考，具体以管体为准
