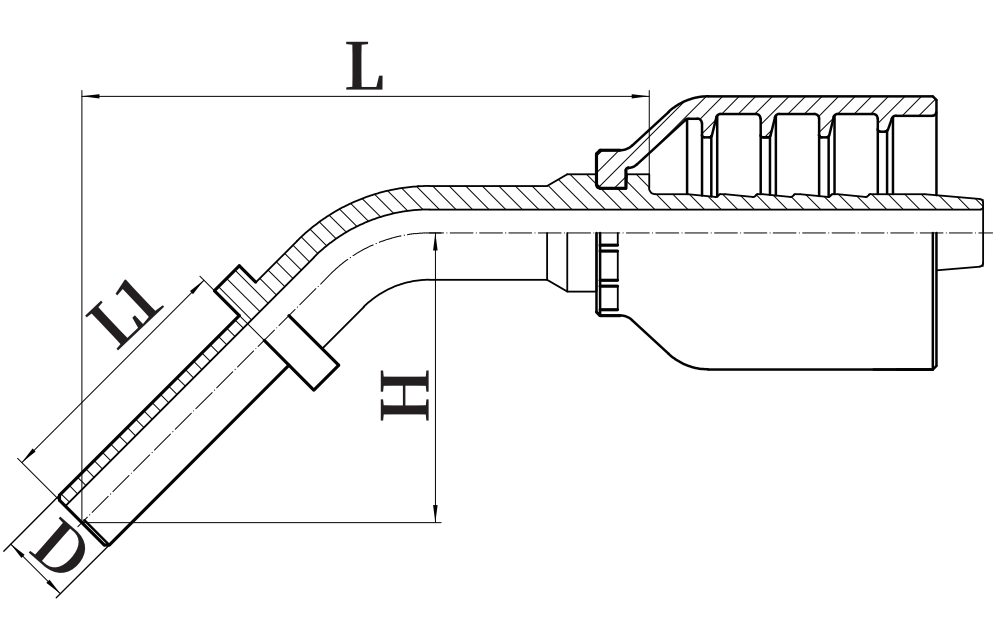

| 代号 | 管子外径 | 软管 HOSE BORE | 尺寸DIMENSIONS | 备注 | ||||
| PART NO. | TUBE O.D | 公称内径 DN | 标号 DASH | L | H | D | L1 | NOTE |
| 50041-06L-04RW | 6 | 6 | 04 | 52 | 30 | 6 | 22 | 轻系列(L) |
| 50041-10L-05RW | 10 | 8 | 05 | 54 | 30.5 | 10 | 23 | |
| 50041-10L-06RW | 10 | 10 | 06 | 56 | 31 | 10 | 23 | |
| 50041-12L-06RW | 12 | 10 | 06 | 58.5 | 34 | 12 | 25 | |
| 50041-12L-08RW | 12 | 13 | 08 | 73 | 37 | 12 | 25 | |
| 50041-15-08RW | 15 | 13 | 08 | 71 | 35.5 | 15 | 25 | |
| 50041-18-10RW | 18 | 16 | 10 | 85 | 39.5 | 18 | 26 | |
| 50041-22-10RW | 22 | 16 | 10 | 87 | 42 | 22 | 28 | |
| 50041-22-12RW | 22 | 19 | 12 | 93.5 | 45.5 | 22 | 28 | |
| 50041-22-16RW | 22 | 25 | 16 | 101 | 46.5 | 22 | 28 | |
| 50041-28-16RW | 28 | 25 | 16 | 104 | 49.5 | 28 | 30 | |
| 50041-35-20RW | 35 | 32 | 20 | 119 | 57.5 | 35 | 36 | |
| 50041-08S-04RW | 8 | 6 | 04 | 54 | 30 | 8 | 24 | 重系列(S) |
| 50041-08S-05RW | 8 | 8 | 05 | 56 | 32 | 8 | 24 | |
| 50041-08S-06RW | 8 | 10 | 06 | 58 | 33 | 8 | 24 | |
| 50041-10S-04RW | 10 | 6 | 04 | 54 | 31 | 10 | 23 | |
| 50041-12S-04RW | 12 | 6 | 04 | 57 | 35 | 12 | 25 | |
| 50041-12S-05RW | 12 | 8 | 05 | 59 | 35.5 | 12 | 25 | |
| 50041-14-05RW | 14 | 8 | 05 | 61 | 37 | 14 | 29 | |
| 50041-14-06RW | 14 | 10 | 06 | 62 | 37.5 | 14 | 29 | |
| 50041-14-08RW | 14 | 13 | 08 | 74 | 38.5 | 14 | 29 | |
| 50041-16-08RW | 16 | 13 | 08 | 77 | 41.5 | 16 | 30 | |
| 50041-16-10RW | 16 | 16 | 10 | 88 | 43 | 16 | 30 | |
| 50041-20-10RW | 20 | 16 | 10 | 93 | 48 | 20 | 36 | |
| 50041-20-12RW | 20 | 19 | 12 | 101 | 52.5 | 20 | 36 | |
| 50041-25-12RW | 25 | 19 | 12 | 102 | 54 | 25 | 40 | |
| 50041-25-16RW | 25 | 25 | 16 | 110 | 55 | 25 | 40 | |
| 50041-30-16RW | 30 | 25 | 16 | 114 | 59.5 | 30 | 44 | |
| 50041-30-20RW | 30 | 32 | 20 | 125 | 63.5 | 30 | 44 | |
| 50041-38-16RW | 38 | 25 | 16 | 119 | 63.5 | 38 | 50 | |
| 50041-38-20RW | 38 | 32 | 20 | 129 | 68 | 38 | 50 | |
