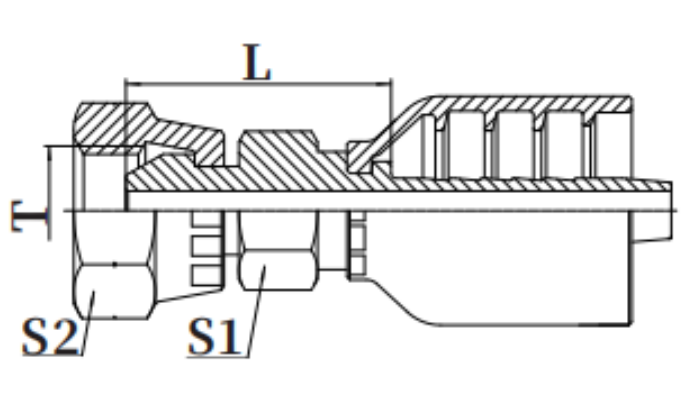

| 代号 | 螺纹 T | 软管 HOSE BORE | 尺寸DIMENSIONS | |||
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 |
| 22641-04-04RW | G1/4 "X19 | 6 | 04 | 38.8 | 15 | 19 |
| 22641-04-05RW | G1/4 "X19 | 8 | 05 | 41.7 | 18 | 19 |
| 22641-06-04RW | G3/8 "X19 | 6 | 04 | 39.8 | 16 | 22 |
| 22641-06-05RW | G3/8 "X19 | 8 | 05 | 41.7 | 18 | 22 |
| 22641-06-06RW | G3/8 "X19 | 10 | 06 | 44 | 18 | 22 |
| 22641-06-08RW | G3/8 "X19 | 13 | 08 | 54.3 | 23 | 22 |
| 22641-08-08RW | G1/2 "X14 | 13 | 08 | 51.3 | 20 | 27 |
| 22641-10-08RW | G5/8 "X14 | 13 | 08 | 54.3 | 23 | 30 |
| 22641-10-10RW | G5/8 "X14 | 16 | 10 | 64.2 | 25 | 30 |
| 22641-12-10RW | G3/4 "X14 | 16 | 10 | 67.2 | 28 | 32 |
| 22641-12-12RW | G3/4 "X14 | 19 | 12 | 71.7 | 29 | 32 |
| 22641-16-16RW | G1 "X11 | 25 | 16 | 84.4 | 35 | 41 |
| 22641-20-20RW | G1. 1/4 "X11 | 32 | 20 | 100.8 | 40 | 50 |
| 22641-24-24RW | G1. 1/2 "X11 | 38 | 24 | 121. 1 | 50 | 55 |
| 22641-32-32RW | G2 "X11 | 51 | 32 | 155 | 70 | 70 |
注：1、表中代号用于编织软管；2、如需用于缠绕软管代号改为22642-XX-XXRW 。
